Legacy Induction Sealers

UniFoiler H Hand Held Sealer

The Unifoiler-H is another hand held cap sealing system that allows your system to "grow" as your output production increases. You can start out with a hand held Unifoiler unit and when it's time to go automated, you can purchase a conveyor style coil and mount, use the same power supply, swap the hand held coil for the conveyor coil and you're fully streamlined for conveyor sealing. Plus you'll always have the hand held coil for R&D or lab purposes.

UniFoiler H Hand Held Sealer

4 kW & 6 kW UniFoilers

Unifoiler-C Conveyor Mounted Stationary System

The Unifoiler-C features our 1kW power supply and our Universal conveyor sealing coil capable of sealing a wide range of closer diameters. A stationary coil mounting bracket is provided to attach the sealing head to any existing conveyor. The bracket has six (6) pre-drilled holes allowing the mount to be positioned at the proper height necessary to the conveyor. A portable stand for mobility from line to line can always be incorporated at a later date.

View Drawing

Unifoiler-U Unitized Portable System

This unitized system marries the power supply and 1kW Universal Coil a stainless steel portable cart with casters, leveling pads, coil height indicator and 20 inches of coil height adjustment to unitize all components of the system. The mobility allows the operator to move the system from line to line or in and out of line as the application demands.

View Drawing

Unifoiler-UC Portable System With Attached 6’ Conveyor

The Unifoiler-UC is unique to Pillar as we’ve designed the portable stand with the capability to attach a 6’ long variable speed conveyor with a 4.5" belt. The same components as the Unifoiler-U allowing maximum sealing capabilities with the additional benefit of a stand-alone system including a conveyor! This system is very popular with organizations that are not fully automated. It can easily be integrated into a full-line conveyor at a later date.

> Back to all induction sealing machines

View Drawing

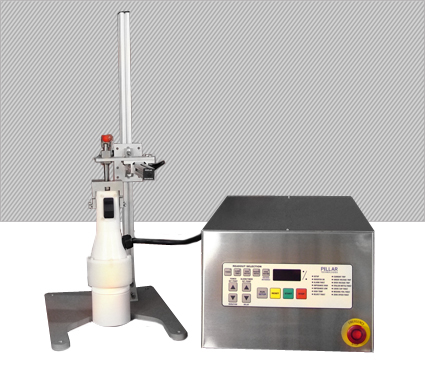

UniFoiler-H Semi-Automatic Sealer

Simply, this system is our Unifoiler-H with the addition of a table mount stand that cradles the hand-held coil so the operation is not fully manual but semi-automatic. The sealing coil adjusts vertically on the stand to be locked in place depending on bottle height. The operator then effortlessly moves the bottles under the coil, taps the ON switch and removes the bottle after proper sealing time. The next bottle slides back in and the process is repeated. There is no need to lift the coil over and over saving time and physical strength.

View Drawing

4 kW & 6 kW UniFoilers

4 kW & 6 kW UniFoilers

Pillar's higher powered UniFoilers are available with a 4 kW or 6 kW IGBT power supply and are paired with Pillar's Universal Flat Sealing Coil. The 4 kW and 6 kW UniFoilers are designed for high output and optimum line speeds, and feature auto start capability, full adjustable output, customer interlock, microprocessor control, and more. These higher powered systems are designed to meet fast line speeds without sacrificing seal integrity.
