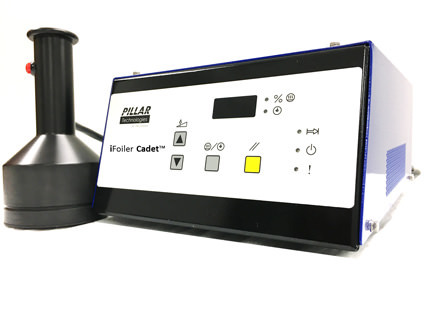

C-Series Hand-Held Induction Sealer

The C-Series Hand-Held Induction Sealer is the smallest member of Pillar's line of induction sealers, providing flexibility and portability that's ideal for low-volume operations. The C-Series Hand-Held utilizes our 1 kW C-Series power supply providing the crucial combination of mobility and sealing power. The Hand-Held sealing coil gives you the flexibility to seal nearly any cap design in a wide range of sizes.

The C-Series Hand-Held is the premiere induction sealing option for applications such as one-off products and short product runs. It's also ideal for boutique and start-up outfits in industries such as food and beverage, herbal and nutritional supplements, and more. In virtually any small-scale operation where there's a need for induction sealing, the C-Series Hand-Held provides a perfect solution. The C-Series Hand-Held also shines in laboratory applications, such as for product testing and development. The portability and versatility of the sealer make it the perfect tool for assessing the viability of induction sealing for a new product, or for developing induction sealable packaging.

C-Series Hand-Held Sealer

Features:

  • 16'' x 10'' x 6'' (406mm x 254mm x 152mm)
  • 19 lbs. (8.6 kg)
  • 120V-240V single phase operation
  • Full adjustment of time from 0-10 seconds in .1 second increments
  • Full adjustment of output to 100%
  • CE Certification
  • Stainless Steel Enclosure
  • Maximum efficiency for consistent sealing
  • Microprocessor controlled
  • Membrane control panel

> Back to all induction sealing machines



For any questions regarding Pillar's C-Series Induction Sealers, including the CS1 Stationary Mounted Induction Sealer, the CP1 Portable Cart Induction Sealer, or the CC1 Portable Conveyor Induction Sealer, email us at sealers@pillartech.com




Compact Footprint and Lightweight Design

The C-Series Hand-Held Sealer can be easily moved wherever you need it, whenever you need it, to provide a reliable and efficient induction seal - providing complete portability and consistent sealing.





Intuitive and Easy to Use

Simply set the output level and time, then place the sealing coil over the container and press the button to seal. The parameters can easily be changes at any time to create a better seal. This ease of use means that the C-Series Hand-Held requires minimal training to operate, saving both time and money.





Seals Virtually All Cap Designs and Sizes

The C-Series Hand-Held has two available unique coil designs that seal cap sizes ranging from either 10 - 77 mm or 63 - 120 mm. It also features a removable center to insert tall caps so that the foil is close enough to be heated and effectively sealed.
